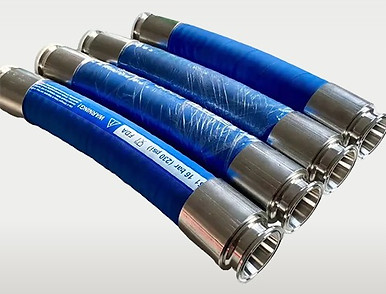

UHMWPE FoodChem Hose
Ultra High Molecular Weight Polyethylene (UHMWPE) Hose is an extremely flexible, high pressure, high temperature discharge hose designed to handle food products, milk, beverages, alcohols, sanitary materials, pharmaceuticals, chemicals, solvents & 98% of commonly used acids.
The hose will not leach into and contaminate the product being conveyed.
Construction
Clear PVC construction and reinforced with a rigid spiral
coil framework.
Core
Reinforcement
Cover
Temperature
: White colour, Synthetic rubber with transparent
UHMPE liner FDA approved
: Multiple plies of high tensile textile with helix steel wire
: Blue abrasion resistant EPDM synthetic rubber
: -40°C to 120°C
Applications
Multipurpose suction and delivery hose designed for :
​
-
Milk, Wine, Beer, Beverages, Edible Oils
-
Acids, Chemicals, Solvents
-
Non-fatty and non-oily foods and liquids, potable water, sanitary products
-
In-plant and tank transfer, delivery, transport
-
Also suitable for CIP Cleaning & Sanitation purpose
✅ Resists any action from many corrosive chemicals, acids, pharma slurries etc.
Product Parameters
* Bend radius values are for outer smooth hoses with spiral steel wire reinforcements.
Outer corrugated finish & discharge hoses have better flexing & bend radius.
