JACK HOSE
Jack Hose has excellent flexibility with small bending radius and is suitable for very high pressure hydraulic systems like jacks, cylinders, rescue equipments, mining equipments, etc.
It is an ideal hose designed for outdoor applications as it's excellent abrasion and hydrolysis resistance.
Construction
Inner core made of polyamide, reinforcement of high tensile steel braids and exterior cover made of anti-abrasion polyurethane.
Core
Reinforcement
: Thermoplastic Elastomer
: Option 1 - Double braids of steel wire
Option 2 - One or more braids of aramid fiber with one
braid of steel wire
Cover
Temperature
: Polyurethane, Red Orange Colour*
: Continuous: -40°C to +100°C ; Temp. not to
exceed +70°C for Air and Water based fluids
* Different color outer covers available onrequest.
Applications
-
Very High-Pressure hydraulic lines 300 to 700 bar
-
It is compact, high pressure, light weight, high abrasion resistance and low change in length for use with petroleum, synthetic or water-based fluid in hydraulic systems
-

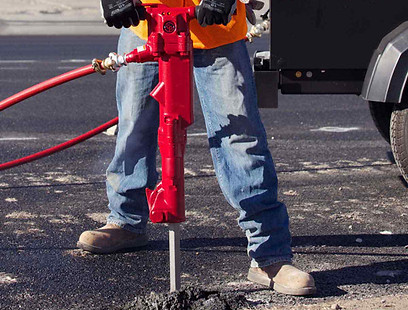

Mainly used for rescue, safety equipment, bolt tensioning tools and jacking & re-railing equipment also
-
Suitable for earthmoving and material handling equipment

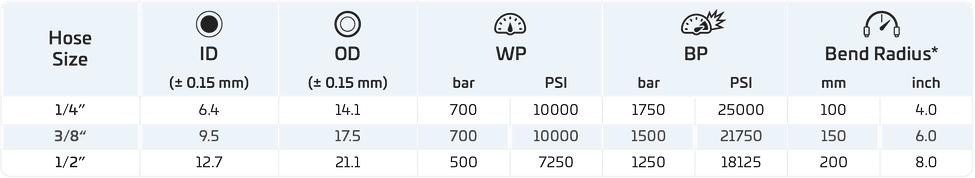

Product Parameters (double braids of steel wire)
Product Parameters (One or more braids of aramid fiber with one braid of steel wire)
